Key Engineering Highlights
- Limpet coil half-pipes provide superior turbulent flow and withstand higher thermal utility pressures (up to 20 Bar).
- Conventional jackets offer larger heat transfer surface area for low-pressure steam and chilled brine applications.
- Full-penetration seal welding and hydraulic cycling prevent thermal fatigue and stress cracking.
- Vishwakarma Engineering provides customized multi-zone jackets for precise exothermic reaction control.

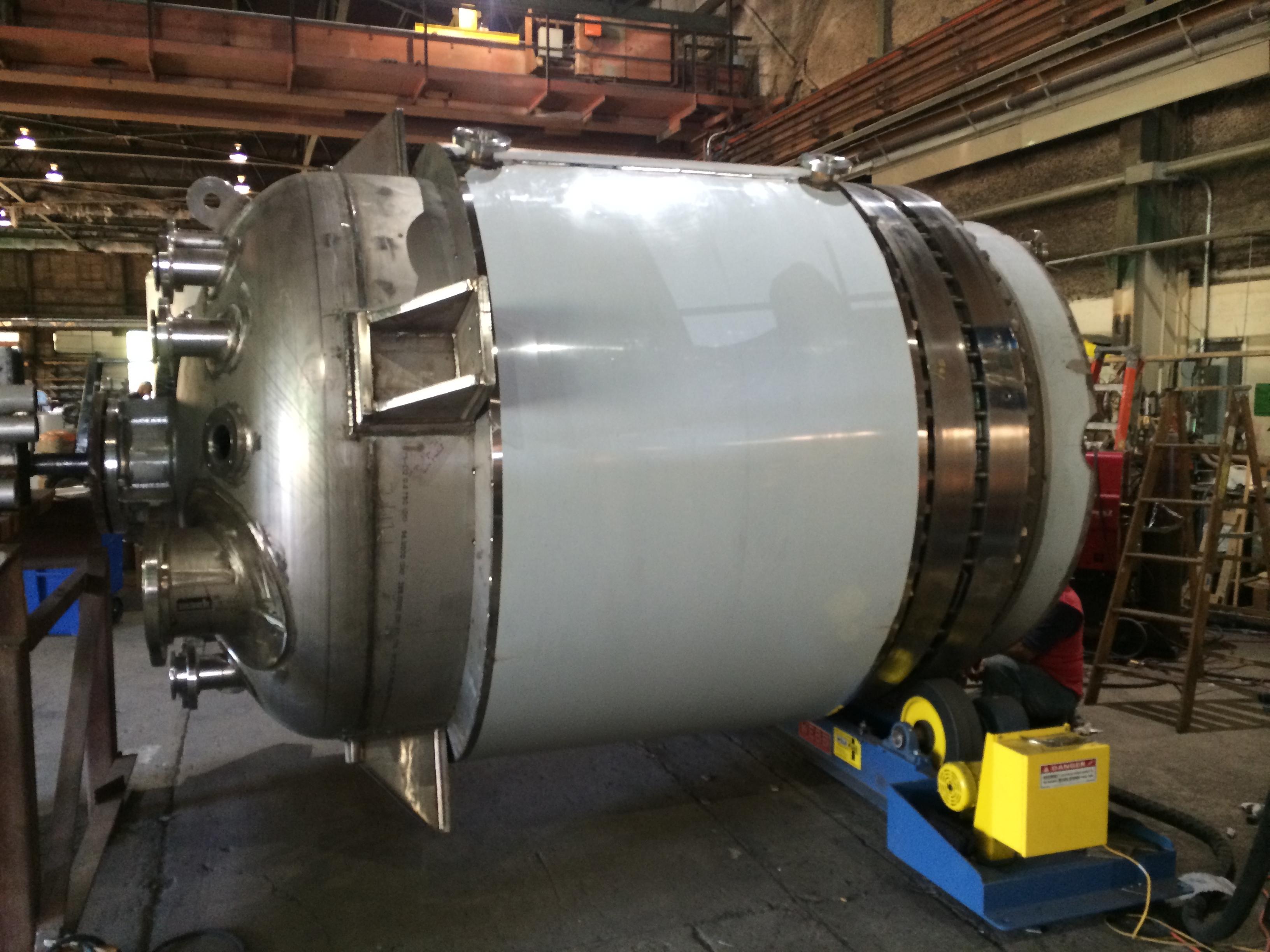

Introduction to Jacketed & Limpet Coil Vessels
In chemical synthesis, resin manufacturing, pharmaceuticals, and dyes processing, temperature regulation is fundamental to product yield and operator safety. Jacketed vessels and limpet coil reactors are specialized process vessels equipped with secondary outer containment channels through which heating media (steam, hot thermic fluid) or cooling media (chilled water, brine, glycol) circulate.
Understanding the operational trade-offs between conventional outer jackets, half-pipe limpet coils, and dimple jackets is vital when specifying process equipment.
Jacket Types Comparison: Conventional vs. Limpet Coil vs. Dimple
| Design Feature | Conventional Jacket | Limpet Coil (Half-Pipe) | Dimple Jacket |
|---|---|---|---|
| Operating Utility Pressure | Low to Medium (Atmospheric to 4 Bar) | High Utility Pressure (Up to 20+ Bar) | Moderate Pressure (Up to 10 Bar) |
| Flow Dynamics | Low velocity, requires internal baffles | High velocity, forced plug flow, turbulent | Turbulent around spot-welded dimples |
| Inner Shell Thickness | Heavier shell required to resist buckling | Thinner inner shell (coil acts as stiffener) | Lighter weight construction |
| Zoned Heating / Cooling | Difficult to isolate sections | Easy to create multi-zone independent loops | Moderate zoning capabilities |
| Ideal Application | Viscous mixing, low pressure steam heating | High temp thermic fluid, rapid exothermic cooling | Large storage tanks, food & beverage |
Critical Engineering Considerations in Limpet Coil Fabrication
Fabricating a high-performance limpet coil reactor requires specialized tooling and welding practices:
- Coil Forming & Pitch: Half-pipe coils are rolled from split seamless pipe or formed strip plates in SS 304/316. Pitch spacing is optimized to maximize heat transfer area while leaving sufficient root gap for continuous robotic or TIG fillet welding.
- Prevention of Thermal Stress & Warpage: When welding coils to the inner vessel shell, balanced sequential welding techniques and water cooling prevent distortion of the vessel shell diameter.
- Pressure Drop Calculation: Vishwakarma Engineering calculates coil cross-sectional area and circulation velocities to ensure adequate flow rates without excessive pump head loss.
Quality Control & Hydraulic Pressure Testing
Because the inner vessel shell and the outer jacket/limpet coil experience different thermal expansion rates, rigorous pressure cycling is mandatory. We conduct:
- Inner Vessel Hydro Test: Test inner vessel at 1.5x design pressure while jacket is open.
- Jacket/Coil Hydro Test: Pressurize jacket/limpet coil to 1.5x utility pressure with vessel unpressurized to check for inner wall deflection or seam weeping.
- Helium Leak Testing & DPT: 100% dye penetrant testing on all coil fillet welds to eliminate pinholes before thermal insulation application.
Why Trust Vishwakarma Engineering for Process Equipment?
ASME & IS Standard Compliance
Engineered to ASME Section VIII Div 1, IS 2825, and API 650 design rules.
100% Non-Destructive Testing
Hydrostatic testing, Radiography (RT), Ultrasonic (UT), and DPT checks.
State-of-the-Art Machine Shop
CNC plate rolling, dish end spinning, and automated SAW welding towers.
Global Exporter Capabilities
Seaworthy packaging, nitrogen purging, and TUV/SGS third-party dossiers.
